Spec-Utility Items (9Y190)

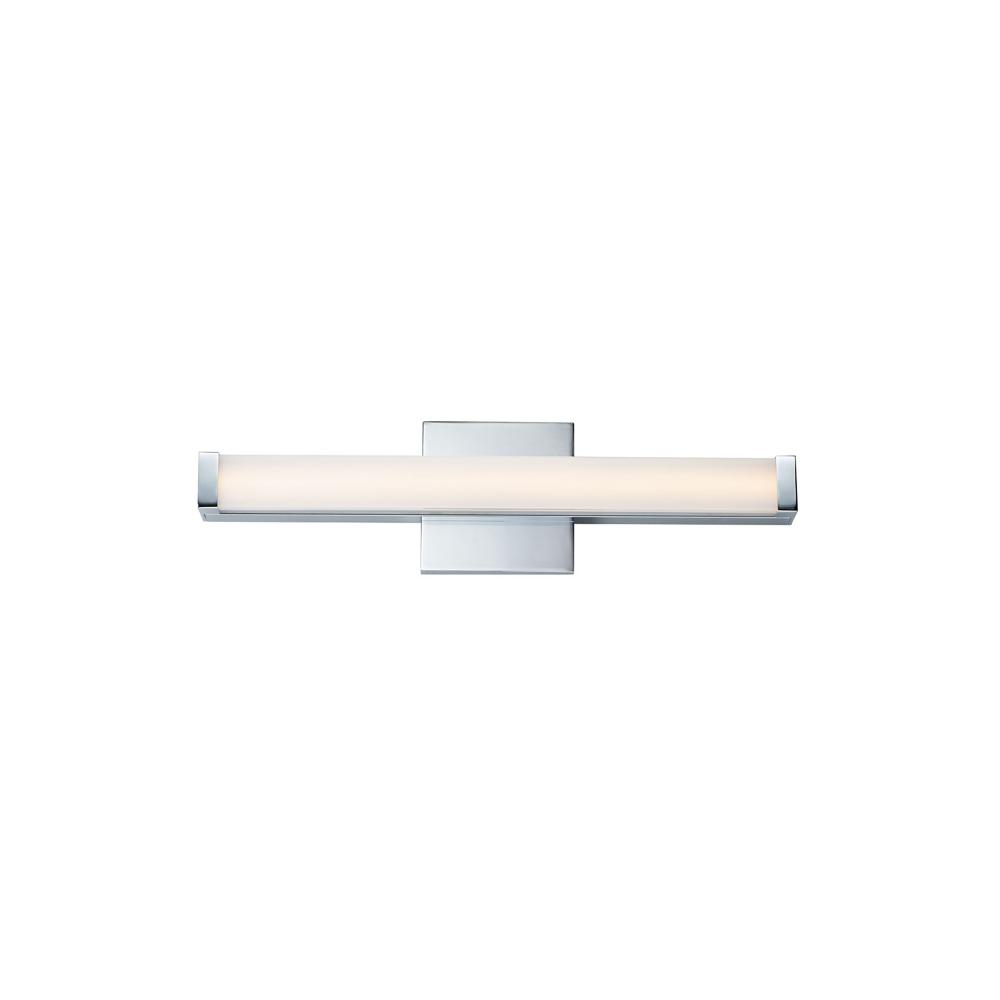

Spec 18" LED Bath Bar CCT Select

Downloads

Click Here to view Assembly Instruction Sheet

Click Here to view Spec Sheet

Product Specification

Item #

9Y190

Dimensions

Height: 4.75"

Width: 18.00"

Additional product details

Internal #

9Y190

Category

Bath Vanity , Utility Items

Family

Spec

Voltage

120-277

Backplate Height

4.75

Backplate Width

4.75

Bulb Dimmable

27-35-40

Bulb Hours

45000

Bulb Type

LED

Extension

2.75

Introduction Date

45292

Kelvin

Select 27/35/40

Lumens / Light Output

1250

Material

Aluminum

Ship Carton Height

3.35

Ship Carton Length

26.18

Ship Carton Width

5.31

Ship Weight

2.43

Sold By

Each

Vendor Ship Method

UPS

Weight

1.85

Wire Included

ADA Compliant

Yes

Carton Cubic Feet

0.27

Cartons Per Unit

CRI

Damp Rated

Yes

Install Direction

Any

Lighting Direction

Omni

Long Description

This minimalistic contemporary approach to LED vanity lighting will be the standard for both residential and commercial applications. The light engine features a high quality dimmable driver with multi volt input and high color rendering LEDs for the ultim

Output Voltage

Safety Rating

cETLus

Shade Height

0.75

Shade Material

Polycarbonate

T24

JA8 Listed

Unit Increments

Finish

Additional options that would change other selections
