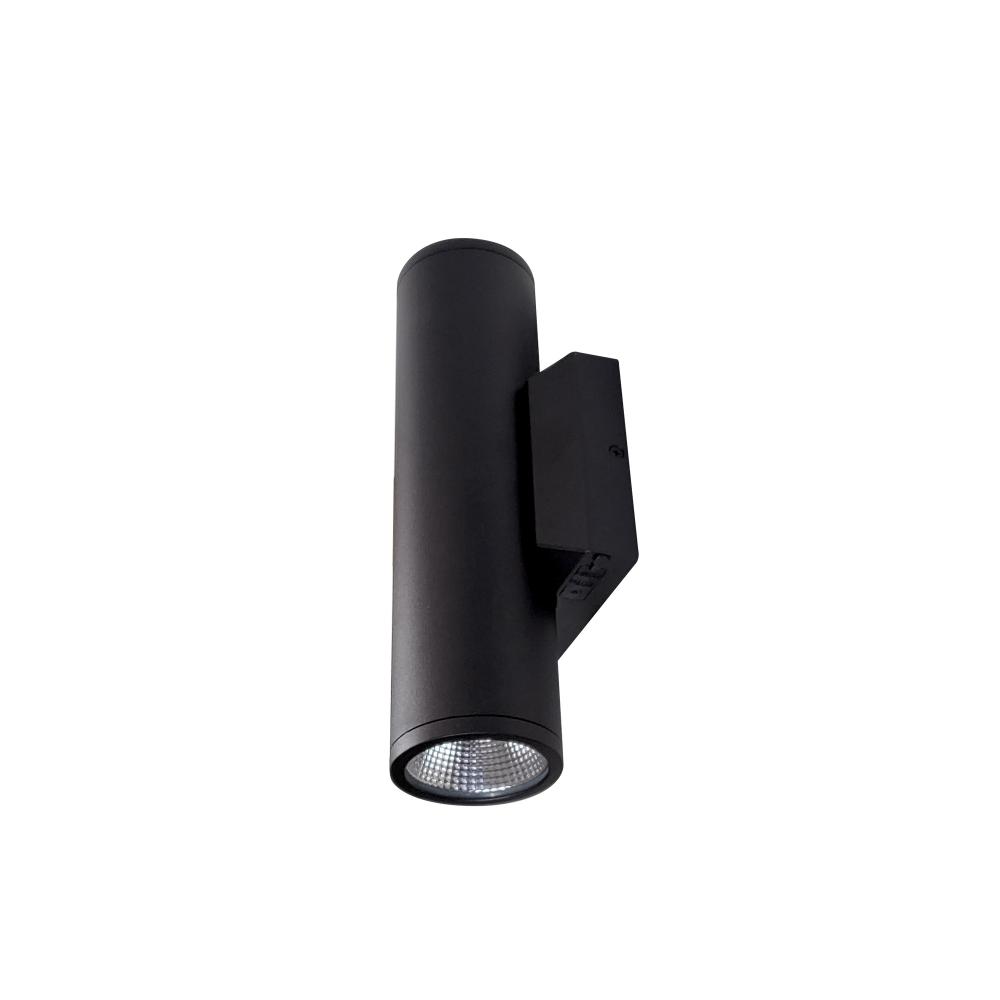

3" Up & Down Wall Mounted LED Cylinder with Selectable CCT, Black finish
Image may not reflect selected features
3" Up & Down Wall Mounted LED Cylinder with Selectable CCT, Black finish (1J9W61)
Architectural grade ADA Compliant up-and-down wall mount cylinder with dedicated LED attached to a deep cone reflector or baffle for optimal visual comfort. This minimalist yet versatile design can be changed to single direction or up & downlight. Cylinders also include a selectable CCT switch located on the cover plate.
Input Voltage: 120-277VAC
Lumens / Wattage: 3000lm (1500lm per direction) / 35W
Color Temperature: Selectable CCT (3000K/4000K/5000K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Downloads
Spec Sheet
Product Specification
Item #
1J9W61
Dimensions
Height: 11.88"
Width: 4.38"
Additional product details
Internal #
1J9W61
Category
Sconces
Subcategory
Wall Sconces
Option
Title 24
Category
Cylinder
Product Line
LE45
Est. Shipping Wt.
4
Length
5
Lumens / Light Output
3000lm (1500lm per direction)
Ship Carton Height
13.375
Ship Carton Length
5.5
Ship Carton Width
5.25
Weight
3.1
CCT
Selectable CCT (3000K / 4000K / 5000K)
CEC Database
Y
CEC Item Number
NYUD-3L1*****
CEC Substitute Item
NYUD-3L1345BZ
Contains Battery
No
Country of Origin
CHN
CRI
90
DLC Listed
No
Master Box H
14
Master Box L
12
Master Box Qty
4
Master Box W
11
Master Box Wt.
16
Product Family
CYLINDER
Safety Listing
cETLus
Wattage
35W


Other Details:
  • 3.4
Finish
Additional options that would change other selections
Call for Price
Qty:
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 206 items available.
