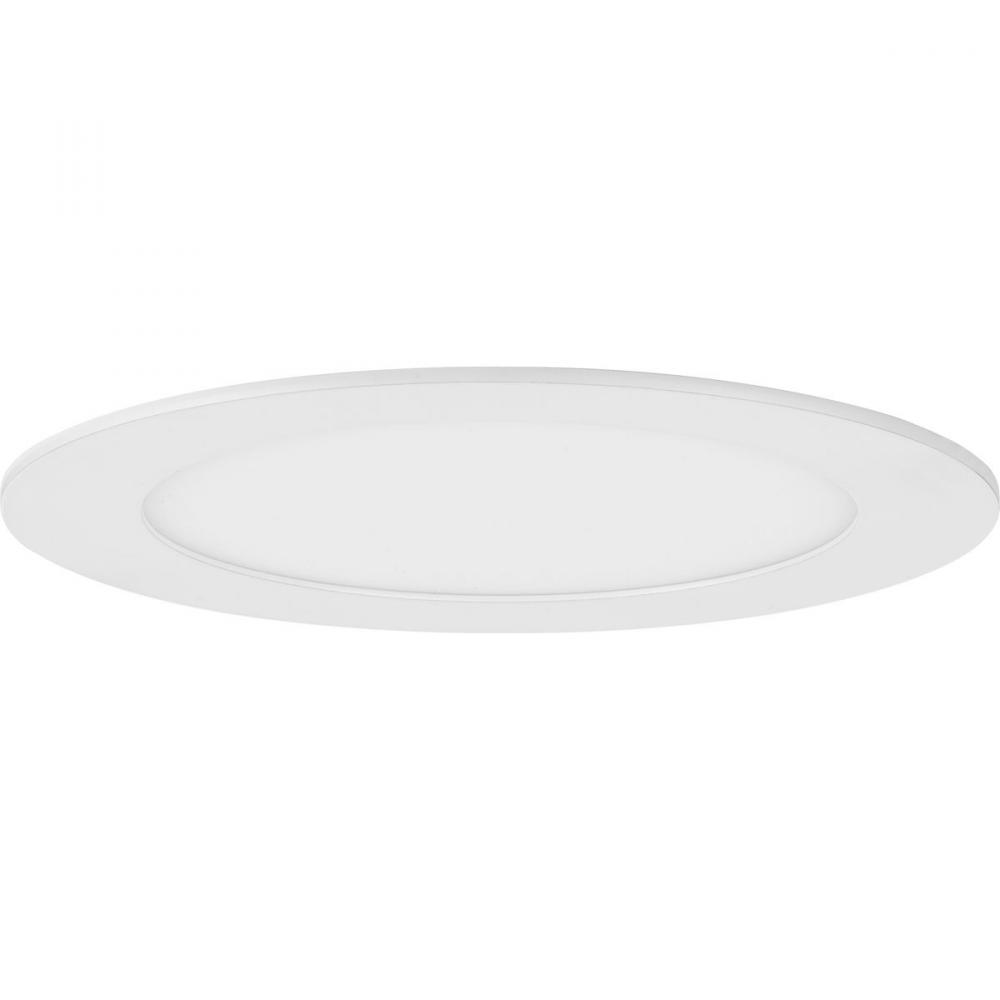

Everlume Collection 6 in. Satin White LED Low Profile Canless Recessed Downlight (AU9HX)
With a slim profile and the latest LED technology, the 6-inch Everlume Recessed Downlight offers smooth, even 3000K illumination to homes and commercial spaces. Its edge-lit surface delivers low glare, 12W, 950 lumen light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers. Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings. A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing. The trim features a gasket to close off the ceiling opening. Additionally, spring clips ensure a secure flush mount to the ceiling surface. Everlume recessed LED is easily installed into 6-inch openings in low clearance, new construction and remodel, ceiling applications. This versatile downlight is JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
Downloads
Click Here to View Spec Sheet
Click Here to View Installation Sheet
Click Here to View Warranty
Product Specification
Item #
AU9HX
Dimensions
Height: 1.00"
Width: 7.17"
Length: 7.17"
Additional product details
Internal #
AU9HX
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24 , Wet Rated , Prop 65
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Wattage
12w
Category
Recessed
Finish
Satin White
Style
Utilitarian
Option
Prop 65 , Title 24 , Wet Rated
Family
Everlume
Voltage
120 VAC
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Kelvin
3000
Keyword(s)
Bathroom, Bedroom, Bonus Room, Garage, Great Room, Kitchen, Laundry, Living Room, Sitting Room, Utility
Length
7.17 in
Lumens / Light Output
950 lm
Material
Aluminum, Steel
Ship Carton Height
7.48
Ship Carton Length
7.64
Ship Carton Width
2.8
Ship Weight
1.25
Warranty
5 Years Limited Warranty
Weight
1.05
Americans with Disabilities Act
Yes
Base Type
Integrated
Bulb CRI
90
Bulb Included
Yes
Bulb Wattage
12 W
Can be Mounted Up or Down
No
Color
White
Convertible Fixture Includes Both Mounts
No
Country of Origin
CN
Dark Sky
No
Dimming
ELV/Reverse Phase;Triac/Forward Phase
Dimming Range
Dims to 10% Brightness
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Frequency Rating
60 Hz
Lamp Type Basic
Solid State
Lumens per Watt
79
Mount Location
Ceiling Flush/Recessed
Post Top Fits Standard
No
Prop 65
Yes
Quick Link Connector
No
Safety Rating
cETLus Approved
Starting Temperature Minimum
-25 °C
Title 24
Yes
Wet Rated
Yes


Other Details:
  • A detached J-Box, provided with quick connects, eliminates the need for an additional recessed housing
  • Edge-lit surface delivers glare-free illumination to low clearance, new construction and remodel, ceiling applications residential and commercial settings
  • Everlume easily mounts to ceilings in indoor rooms including bathrooms, bedrooms, bonus rooms, garages and sitting rooms and outdoor settings like porches and patios
  • Includes installation instructions and mounting hardware for a quick, easy installation
  • Its aluminum trim is finished in crisp Satin White that blends quietly into its surroundings
  • Its edge-lit surface delivers low glare, 12W, 950 lumen, 3000K light without dark spots from a polycarbonate lens and is dimmable using ELV or TRIAC dimmers
  • Measures 7.165 in. Dia x 1 in. H
  • The trim features a gasket to close off the ceiling opening and spring clips ensure a secure flush mount to the ceiling surface.
  • This versatile downlight is ASTM E283 Air Tight Rated, JA8-2019 Title 24 Rated, and cETLus Wet Listed for use in areas where water may be present.
  • Warranty: Our 5-Year Limited Warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support
Included Items
Bulbs: (1) x 12 Watt LED Solid State
