43 Watt T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast
Image may not reflect selected features

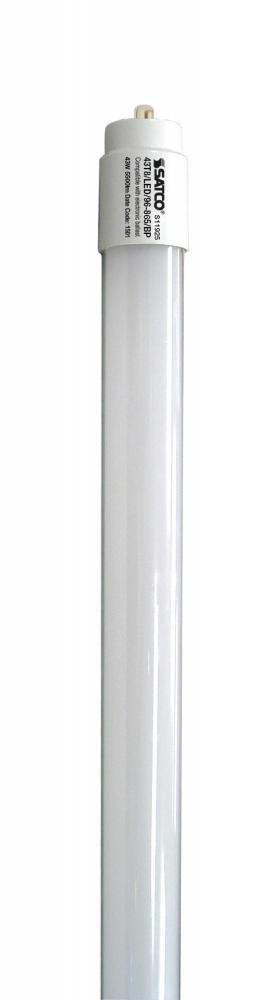

43 Watt T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast (LNFV2)
43 Watt T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Product Specification
Item #
LNFV2
Dimensions
Width: 1.00"
Additional product details
Internal #
LNFV2
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
6500K
Bulb Shape
T8
Diameter
1
EA Length
96
Harmonized Codes
8539.52.0051
Length
96
Lumens
5500L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.97
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread
210
Bulb ANSI Base
Fa8
Bulb Base
Single Pin
Bulb Finish
Gloss White
Burning Position
Universal
Carton Cubic Feet
0.0556
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Daylight
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
127.91 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Daylight
Feature 2
Damp rated for indoor use
Feature 3
Enclosed Rated Lamp
Feature 4
L:96.00 D:1.00
Feature 5
T8, Gloss White Finish
Flourescent Equivalent
54W/59W
Incandescent Equivalent
125W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Gloss White
Lens Material
Glass
Location Rating
Damp
Long Description
Satco's S11925 43-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile
Material
Glass
Minimum Compartment Size
Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
Nominal Length
96
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 43-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. This gloss white bulb is versatile and de
SDS class
LED_Lamp
Shatter Proof Text
Shatterproof coated
Short Description
43T8/LED/96-865/BP 120-277V
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
43W
Finish Family
